45 Degree Saw

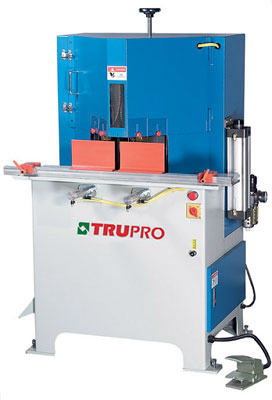

COS-200
Vertical Double Miter Saw For Aluminum
FEATURES:
- Specially designed for cutting high workpieces. A miter saw features over pivot type.
- Sawblades feed vertically. Maximum height of cutting is 200mm.
- Automatic oil mist cooling for sawblades during cutting.
- Vertical and horizontal workpiece clamping design ensures extremely firm clamping for any type of aluminum workpiece.
- Sawblades move vertically on two precision shafts, assuring consistent cutting.
- Compensation for sawblade wear is easy to adjust.
- Sawblade height is adjustable for saving time of cutting.
Model COS-200 Cutting angle 45° Cutting width 90 mm Cutting height 200 mm Sawblade sizes Ø14"' x Ø 1"' x 3.0 mm x 120T Spindle speed 3200 RPM Spindle motors 3HP x 2 Clamping cylinders 4 Vertical clamps & 2 Horizontal clamps Cutting method Non-staggered blades vertical cutting Table height 850 mm In-feed extension table 1525 mm Out-feed extension table 1525 mm N.W. / G.W. 390 / 480 kg Machine dimensions 1000 x 910 x 1580 mm Packing dimensions 1180 x 1030 x 1700 mm
