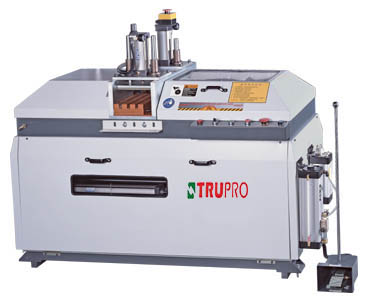

45 Degree Saw
l When the foot panel switch is pressed the machine will perform material clamping and cutting automatically
l Horizontal cutting and Saw moves on linear guide-way, that assures accurate and large cutting.
l Cutting feed is driven by an air/hydraulic combination power for smooth feed speed.
l Two Vertical workpiece clamping design ensures extremely firm for any type of aluminum workpiece.
l Work piece clamping pressure is adjustable to eliminate material deformation problem.
l Automatic oil mist cooling for sawblades provides burr-free surface of cut, while extending sawblade life.
l Alternatively sawblades straight feed in horizontal direction allows large cutting width.
l Equipped with wear-resistant linear motion guides for accurate angle of cut.
l Cutting angle is easy to adjust.
l Gap between gauge and sawblade is adjustable no burr after sawing.
Model
COS-350L
Cutting angle
45°
Cutting width
350mm
Cutting height
90mm
Sawblade size
Ø14"xØ1"x2Piece
Spindle
3200R.P.M
Motor
2HP x 2
Clamping system
2 sets of vertical clamping
Worktable size
500x320mm
Worktable height
840mm
Infeed/outfeed length(opt.)
1~7M(Opt.)
N.W. / G.W.
650/780kg
Machine dimensions ( LxWxH )
1930x725x1300mm
Packing dimensions ( LxWxH )
2050x845x1500mm
