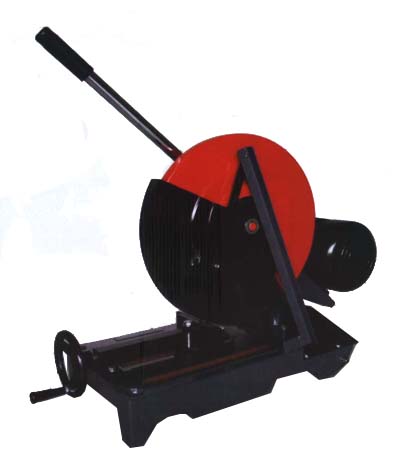

Cut Off Machine
1. Motor Powerful-5 horsepower three phase motor. That makes the toughest cutting jobs as easy as sliding through butter. Fast too.
2. Heavy Duty Construction-Strength to give years of trouble free service. Has a caste iron frame heavy fabricated steel guard and heavy duty casters for ease of portability.
3. With secret-type double-wheel device for easy carry.
4. The chute is specially designed for the saw dust to slide through saw layer while sawing.
5. Drive-Dual drive belt for power and reliability.
6. Quick-Change Vice-Enables instantaneous swivels from 90 degree to 45 degree miter cuts.
Model
COS-16H
Max. capacity
90∘
Circular: 130mm(5") Square: 120mm(4-5/8")
45∘
Circular: 115mm(4-1/2") Square: 90mm(3-1/2")
Wheel dia. & hole
Ø405×25.4 (16" ×1")
Motor
3~5HP
Noload speed
50Hz:2450rpm, 60Hz:2930rpm
Max. wheel speed
50Hz:3120rpm, 60Hz:3750rpm
Weight
95kgs / 100kgs
Shipping case
850×480×640mm
