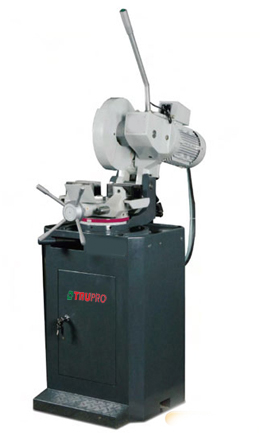

Cut Off Machine
l Centrically tensing vice, quadruple guiding, with individually adjustable jaws.
l Cutting is always performed at an optimum position towards the workpiece.
l Clamping system with 4 levers.
l Solid machine substructure with holes to assemble the material stand MSR4 on both sides.
l Removable coolant tank with integrated powerful pump.
l High-grade, fracture-proof and movable protective device with rapid opening mechanism provides optimum protection when cutting.
l Long handle allows sawing without great effort.
l Built-in switch with handle.
l Angular scale allows precise working.
l Swivel range -45° to +45°
Optional accessories: Material stand MSR4,1meter.
Model
COS-275
COS-315
COS-350
Cutting range at cylinder 0°
Ø60mm
Ø70mm
Ø110mm
Cutting range at rectangular 0°
100×60mm
130×70mm
135×110mm
Cutting range at square 0°
100×60mm
70×70mm
110×110mm
Cutting range at cylinder 45°
Ø60mm
Ø70mm
Ø110mm
Cutting range at rectangular 45°
70×60mm
90×70mm
110×90mm
Cutting range at square 45°
60×60mm
70×70mm
95×95mm
Speed of sawing blade
96/48rpm
38/19rpm
38/19rpm
Diameter of sawing blade
275mm
315mm
350mm
Motor power
2HP/ 1.4KW
1.5HP/ 1.1KW
1.5HP/ 1.1KW
Dimension
810×550×1580mm
920×640×1510mm
920×640×1540mm
Packing
940×560×1510mm
630×1000×1510mm
630×1000×1510mm
New weight
175kgs
235kgs
255kgs
