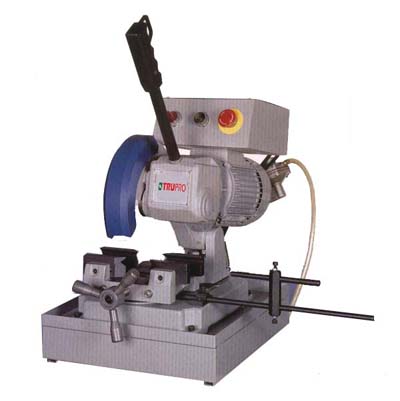

Cut Off Machine
COS-225F
Circular Sawing Machine
l Head rotation 0° to 45° right.
l Gearbox reduction unit with nickel bronze gear and hardened and ground worm screw.
l Coolant pump.
l Hinged pivot.
l Enclosed electric motor with outside ventilation system.
Model
COS-225F
Max. capacity
90∘
Circular: 30mm Square: 65mm
rectangular: 80×55 mm
45∘
Circular: 25mm Square: 60mm
rectangular: 65×50 mm
Motor
1 HP
Oil bath reduction gear box
27:1
Max. blade size
225 mm
Blade revolution speed
52 RPM
Vice opening
80 mm
Weight of the machine w/o stand
Weight of the machine with stand
40 kg
Dimensions of the machine w/o stand
Dimensions of the machine with stand
900×380×500 mm
