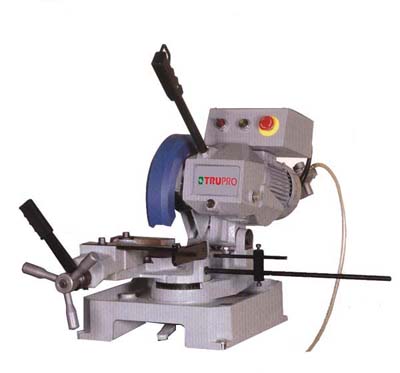

Cut Off Machine
COS-250F
Circular Sawing Machine
l Head rotation 0° to 45° right.
lGearbox reduction unit with nickel bronze gear and hardened and ground worm screw.
l Quick lock vice complete with hardened and ground jaws and burr-free clamping device.
l Double adjustable hinged pivot.
l Coolant pump with swarf separation system to keep the blade oiled and cleaned.

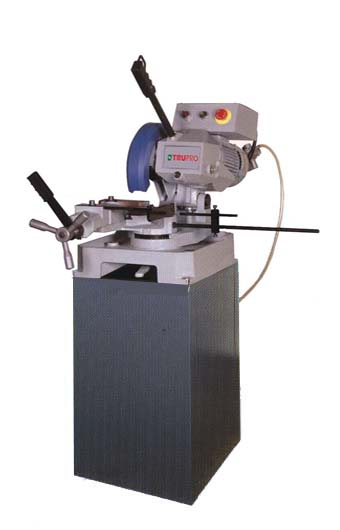

l With Stand.
Model
COS-250F
Max. capacity
90∘
Circular: 40mm Square: 65mm
rectangular: 90×50 mm
45∘
Circular: 35mm Square: 58mm
rectangular: 70×50 mm
Motor
1.3 HP
Oil bath reduction gear box
33:1
Max. blade size
250 mm
Blade revolution speed
42 RPM
Vice opening
100 mm
Weight of the machine w/o stand
85 kg
Weight of the machine with stand
105 kg
Dimensions of the machine w/o stand
900×550×600 mm
Dimensions of the machine with stand
900×550×1360 mm
