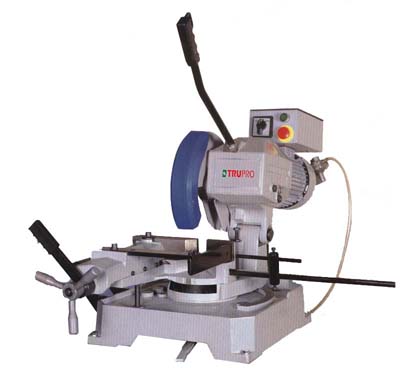

Cut Off Machine
COS-315F
Circular Sawing Machine
l Head rotation 0° to 45° right.
l Gearbox reduction unit with nickel bronze gear and hardened and ground worm screw.
l Quick lock vice complete with hardened and ground jaws and burr-free clamping device.
l Double adjustable hinged pivot.
l Coolant pump with swarf separation system to keep the blade oiled and cleaned.

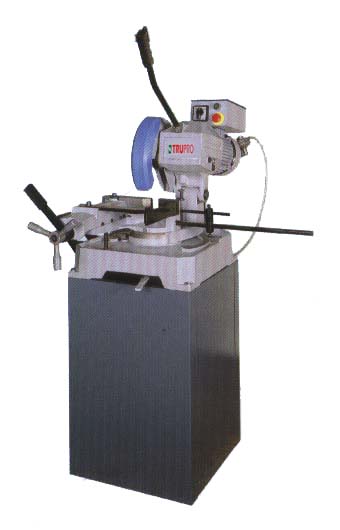

l With stand.
Model
COS-315F
Max. capacity
90∘
Circular: 80mm Square: 90mm
rectangular: 115×70 mm
45∘
Circular: 70mm Square: 80mm
rectangular: 85×70 mm
Motor
2.2 HP
Oil bath reduction gear box
34:1
Max. blade size
315 mm
Blade revolution speed
42/84 RPM
Vice opening
120 mm
Weight of the machine w/o stand
140 kg
Weight of the machine with stand
165 kg
Dimensions of the machine w/o stand
1100×700×800 mm
Dimensions of the machine with stand
1100×700×1560 mm
