Radial Drill
l With wide range of speed, with manual, power feeds. The feed of machines are very easily engaged and disengaged at any time.
l The radial arm can rotated and can tilted ±45°, it reliable and easy job can be done.
l Main parts are made by machine center which import with precision and efficiency, ensuring reliability and high quality.
l The machine with small appearance and much function, the machine are widely used for drilling, counter-boring, reaming, tapping etc.
l “P” With coolant system.
“P” With coolant system.
Model

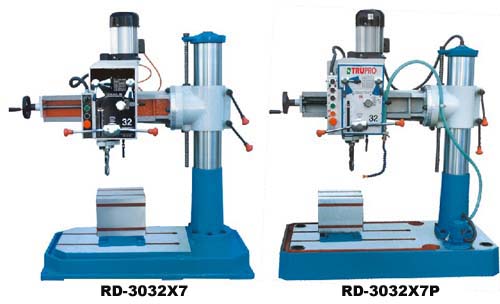

RD-3032X7 / RD-3032X7P
Max. drilling capacity
31.5 mm Max. tapping capacity
Cast iron
20 mm Steel 16 mm Distance spindle axis to column generating line
300~
700 mm Diameter of column
150 mm Spindle taper
MT3
Spindle travel
130 mm Spindle speed range
100~1600 r/min
Spindle speeds series
8
Spindle feed
0.08, 0.14,
0.23 mm/r Rotary angle of rocker in horizontal plane
360°
Max. distance spindle nose to base
275~
680 mm Dimension of worktable
250×250×
250 mm Dimension of base
1050×550×
120 mm / 1200×625×
155 mm Overall size
1235×550×
1195 mm / 1235×625×
1230 mm Main motor
0.75 Kw or 1.1Kw
Coolant motor
---- / 40w
G.W/N.W.
390/
310 kg, 580/ 500kg Packing dimension
122×62×
128 cm / 127×69× 137 cm Standard accessories:
Special accessories:
l Drill chuck
l Arbor
l Taper sleeve
l Drift
l Box shape worktable
l Stand
l Angle vice
l Safety guard
