Radial Drill
RD-3032X8-1 / RD-3040X8-1 / RD-Q3040X10-1

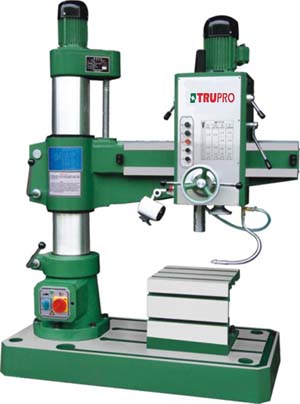

Radial Drilling Machine
- With safe and reliable feed safety machine, all parts easy operation and change.
- All controls centralized on the head stock easy operation and change.
- Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
- Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
- Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
- Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
- The machine with small appearance and much function, the machine widely used for drilling, counter-boring, tapping, etc.
Model
RD-3032X8-1 / RD-3040X8-1
RD-Q3040X10-1
Max. drilling capacity
32/40 mm
40 mm
Distance spindle axis to column generating line
320~820 mm
320~1020 mm
Diameter of column
200 mm
200 mm
Spindle taper
MT4
MT4
Spindle travel
240 mm
240 mm
Spindle speed range
75~1220 r/min
75~1220 r/min
Spindle speeds series
6
6
Range of Spindlefeed
0.1~0.25 mm/r
0.1~0.25 mm/r
Spindle feed
3
3
Max. distance spindle nose to base
120~860 mm
120~860 mm
Dimension of worktable
400×400×350 mm
400×400×350 mm
Dimension of base
1370×700×160 mm
1370×700×160 mm
Overall size
1407×720×1885 mm
1600×720×1885 mm
Main motor
1.5 KW
1.5 KW
G.W/N.W.
1425/1200kg
1450/1230kg
Packing dimension
155×77×210 cm
175×77×210 cm
Standard accessories:
Special accessories:
- Box shape worktable
- Taper sleeve
- Tool releasing wrench
- Drift
- Eyelet bolts
- Quick instead chuck
- Tapping chuck
- Grease gun
