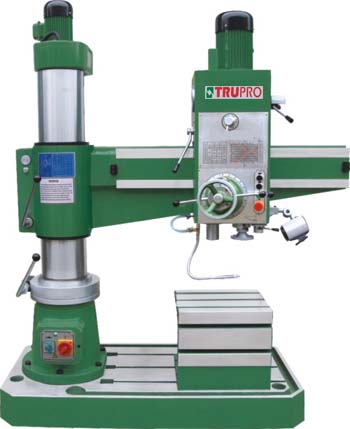

Radial Drill
l The Radial Drilling Machine, It’s construction designed elaborately, with perfect appearance and convenient maintenance.
l The headstock radial arm and columns are clamped by manual clamping mechanisms.
l It has feature of wide speed and feed range, compact operation key, reliable and enough rigidly.
l The machine has a ample rigidity and power in drilling, counter boring, spot facing reaming, tapping, even boring when equipped with a special device. It is widely used in every department of machining medium and small sizes work pieces.
Model
RD-3032X10
RD-3040X10
Max. drilling capacity
32mm 40 mm Distance spindle axis to column generating line
200~
1000 mm 200~
1000 mm Diameter of column
240 mm 240 mm Spindle taper
MT4
MT4
Spindle travel
250 mm 250 mm Spindle speed range
71~1800 r/min
71~1800 r/min
Spindle speeds series
8
8
Range of Spindle feed 0.13~
0.54 mm/r 0.13~
0.54 mm/r Spindle feed
4
4
Max. distance spindle nose to base
264~
1064 mm 264~
1064 mm Dimension of worktable
400×450×
400 mm 400×450×
400 mm Dimension of base
1500×740×
160 mm 1500×740×
160 mm Overall size
1730×750×
2360 mm 1730×750×
2360 mm Main motor
2.2 KW
3 KW
G.W/N.W.
1700/
1400kg 1700/
1400kg Packing dimension
187×97×
220 cm 187×97×
220 cm Standard accessories:
Special accessories:
l Box shape worktable
l Taper sleeve
l Tool releasing wrench
l Drift
l Eyelet bolts
l Quick instead chuck
l Tapping chuck
l Grease gun
