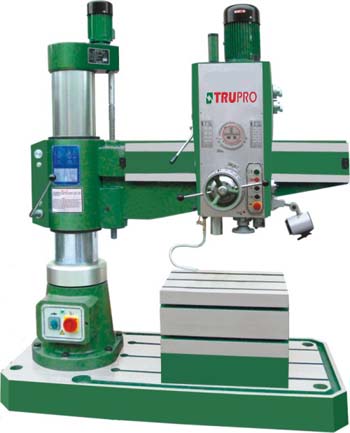

Radial Drill
l With wide range of speed and feed, with manual、power and fine feeds. The feed of machines are very easily engaged and disengaged at any time.
l With safe and reliable feed safety machine, all parts easy operation and change.
l All controls centralized on the head stock easy operation and change. With rapid and accurate hydraulic preselect ion of speeds and feeds of spindle.
l Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
l Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
l Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
l Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Model
RD-3032X10-1
RD-3040X10-1
Max. drilling capacity
32mm 40 mm Distance spindle axis to column generating line
300~
1000 mm 300~
1000 mm Diameter of column
240 mm 240 mm Spindle taper
MT4
MT4
Spindle travel
280 mm 280 mm Spindle speed range
32~2500 r/min
32~2500 r/min
Spindle speeds series
16
16
Range of Spindle feed 0.10~
1.25 mm/r 0.10~
1.25 mm/r Spindle feed
8
8
Max. distance spindle nose to base
220~
1000 mm 220~
1000 mm Dimension of worktable
600×450×
450 mm 600×450×
450 mm Dimension of base
1710×800×
160 mm 1710×800×
160 mm Overall size
1760×800×
2050 mm 1760×800×
2050 mm Main motor
2.2 KW
2.2 KW
G.W/N.W.
2000/
1600kg 2000/
1600kg Packing dimension
187×97×
220 cm 187×97×
220 cm Standard accessories:
Special accessories:
l Box shape worktable
l Taper sleeve
l Tool releasing wrench
l Drift
l Eyelet bolts
l Quick instead chuck
l Tapping chuck
l Grease gun
