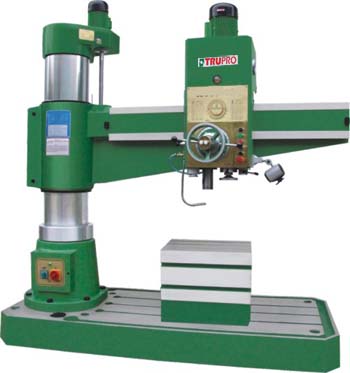

Radial Drill
l With wide range of speed and feed, with manual、power and fine feeds. The feed of machines are very easily engaged and disengaged at any time.
l With safe and reliable feed safety machine, all parts easy operation and change.
l All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power.
l Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
l Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
l Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
l Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Model
RD-3040X16-1
RD-3050X16-1
RD-Q3050X20-1
Max. drilling capacity
40mm 50mm 50mm Distance spindle axis to column generating line
350~
1600 mm 350~
1600 mm 350~
2000 mm Diameter of column
350 mm 350 mm 350 mm Spindle taper
MT4
MT5
MT5
Spindle travel
315 mm 315 mm 315 mm Spindle speed range
25~2000 r/min
25~2000 r/min
25~2000 r/min
Spindle speeds series
16
16
16
Range ofSpindle 0.04~
3.2 mm /r0.04~
3.2 mm /r0.04~
3.2 mm /rSpindle feed
16
16
16
Max. distance spindle nose to base
350~
1250 mm 320~
1220 mm 320~
1220 mm Dimension of worktable
630×500×
500 mm 630×500×
500 mm 630×500×
500 mm Dimension of base
2400×1000×
200 mm 2400×1000×
200 mm 2400×1000×
200 mm Overall size
2500×1060×
2650 mm 2500×1060×
2650 mm 2900×1060×
2650 mm Main motor
3 KW
4 KW
4 KW
G.W/N.W.
3900/
3500kg 3900/
3500kg 3950/
3550kg Packing dimension
260×112×
260 cm 260×112×
260 cm 300×112×
260 cm Standard accessories:
Special accessories:
lBox shape worktable
lTaper sleeve
lTool releasing wrench
lDrift
lEyelet bolts
lQuick instead chuck
lapping chuck
lGrease gun
