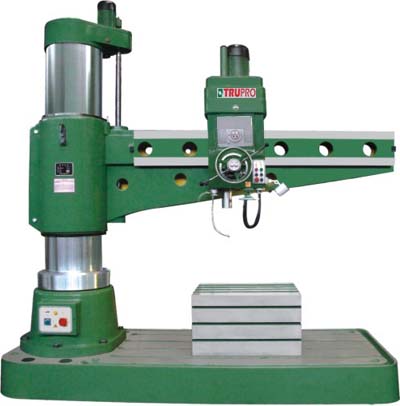

Radial Drill
l Gather mechanical-electrical-hydraulic functions, use extensively.
l With wide range of speed and feed, with manual、power and fine feeds. The feed of machines are very easily engaged and disengaged at any time.
l With safe and reliable feed safety machine, all parts easy operation and change.
l All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power.
l Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
l Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
l Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
l Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Model
RD-3080X25
Max. drilling capacity
80mm Distance spindle axis to column generating line
500~
2500 mm Diameter of column
550 mm Spindle taper
MT6
Spindle travel
450 mm Spindle speed range
16~1250 r/min
Spindle speeds series
16
Range ofSpindle 0.04~
3.2 mm /rSpindle feed
16
Max. distance spindle nose to base
550~
2000 mm Dimension of worktable
1000×800×
560 mm Dimension of base
3530×1400×
300 mm Overall size
3730×1400×
3790 mm Main motor
7.5 KW
G.W/N.W.
15000/
11000kg Packing dimension
416×165×
248 cm Standard accessories:
Special accessories:
l Box shape worktable
l Taper sleeve
l Tool releasing wrench
l Drift
l Eyelet bolts
l Quick instead chuck
l Tapping chuck
l Grease gun
