Wood Lathe--Full Container

WL-MC254

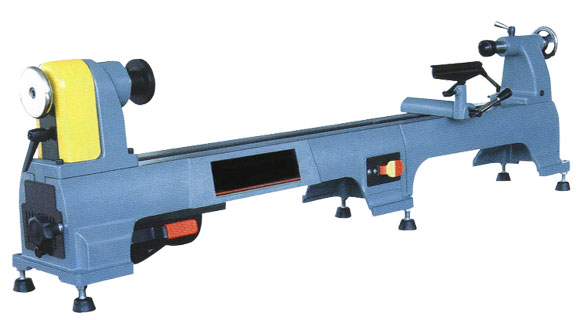

10" Wood Lathe
    • CAST IRON FRAME
    • QUICK LOCK CONTROL LEVERS EASILY POSITION TOOLREST
    • BED EXTENSION (OPTIONAL)
  • ModelWL-MC254
    SPINDLE SPEED :Six speed: 480 / 1270 / 1196 / 2730 / 3327 / 4023 RPM
    SWING OVER BED :10" (254mm)
    DISTANCE BETWEEN CENTER :15" (382mm)
    SPINDLE THREAD :1" (25.4mm) - 8TPI
    HOLLOW TAILSTOCK :3/8" (9.5mm)
    MORSE TAPER :MT#2 (Headstock & Tailstock)
    SELF EJECTING TRAVEL :2" (51mm)
    TOOL REST :6" (152.5mm)
    FACE PLATE :3" (76mm)
    PACKING SIZE :37-3/8" x 11-5/8" x 17-21/64" (950 x 295 x 440mm)
    WEIGHT :N.W. : 48KGS (106LBS)
     G.W. : 51KGS (112.5LBS)
    OPTIONAL ACCESSORY :Bed Ext.
