Wood Lathe--Full Container

WL-MC305

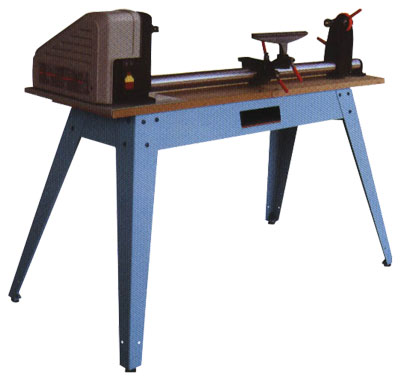

12" Wood Lathe
  • Model WL-MC305
    SPINDLE SPEED : Four speed: 875 / 1350 / 2250 / 3450RPM
    SWING OVER BED : 12" (305mm)
    DISTANCE BETWEEN CENTER : 35" (889mm)
    SPINDLE THREAD : 3/4" (19mm) - 16TPI
    HOLLOW TAILSTOCK : 3/8" (9.5mm)
    MORSE TAPER : MT#1 (Headstock & Tailstock)
    SELF EJECTING TRAVEL : 2" (51mm)
    TOOL REST : 12" (305mm), 6" (152.5mm)
    FACE PLATE : 6" (152.5mm)
    PACKING SIZE : 52-11/64" x 15" x 15-3/4" (1325 x 380 x 400mm)
    WEIGHT : N.W. : 66KGS (145.5LBS)
      G.W. : 70KGS (154.5LBS)
    OPTIONAL ACCESSORY : 4" Face Plate
