cut off saw+press

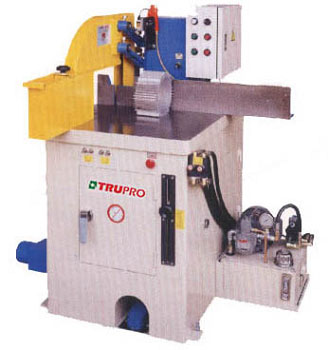

COS-600OL
24" Hydraulic Semi-auto Sawing Machine
Features:
- Hydraulic system makes high stability on sawing. Even blade trace on sawing surface.
- By using hydraulic system, it reduces the chance of PU pipe cracking and reduces malfunction rate.
- Cutting fluid can be recycled and reused.
- Large sawing uses four lubricant sprayers.
- Only lubricant spray uses PU pipes. All the other control system use electric circuit.
- Can cut as high as 200mm.
- Extra large house power 10HP can cut any thick material easily.
Model COS-600OL Cutting angle 90° Saw blade size Ø1" × Ø24" × 120T Max. height of cut 200mm Table area 690 × 550mm Table height 850mm Motor 10HP Air pressure 4~6 kg/cm2 Hydraulic pressure 10 kg/cm2 Machine dimension 1300×1100×1350mm Packing dimension 1400×1200×1450mm N.W/G.W 700 / 850 kg
