cut off saw+press

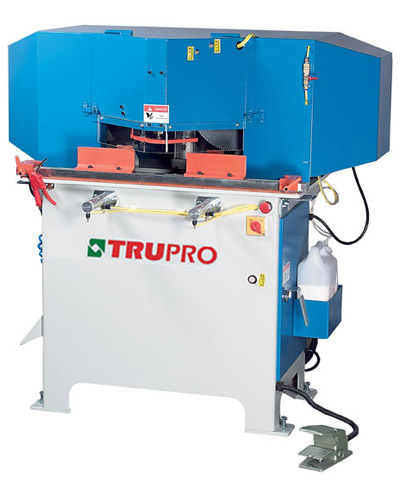

COS-350DB
45° Twin Blade Angle Cutting Machine
l Two blade style, cutting at the same time, can save up to 2/3 of normal time consumption.
l Using cylinder clamping at both top and bottom, front and back, to fix and keep the shape of the work-piece. Also ensures the accuracy of cutting angle.
l Contains two sets of lubricant sprayers to lubricate the blade automatically while cutting, and extend the lifetime of blade.
l Suitable for 45 cutting and pushing doors or window frame, aluminum extrusion, doorframes and decoration panels, etc.
Model
COS-350DB
Cutting angle
45°×2
Max. width of cut
100mm
Max. cutting height
100mm.
Sawblade speed
3300rpm
Sawblade size
Φ1"×Φ14"×120T
Table height
820 mm.
Motor
2 HP×2
Air compressor
6 kg. / cm2
Machine size
1300×700×1300mm
Packing size
1510×910×1430mm
