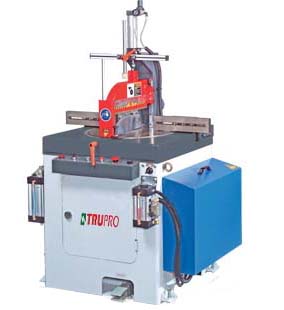

cut off saw+press

l To operate the machine, simply treadle on the foot switch, the machine will automatically perform clamping and cutting for convenient operation.
l Concealed sawblade performs upward cutting. Single or multiple workpieces can be cut simultaneously.
l While cutting, the oil mist splashes automatically for cooling and lubrication.
l Cutting feed is driven by a air/hydraulic combination cylinder for extremely stable cutting speed.
l The machine cabinet painting is baked by high temperature of 200 degree ( Powder coating ) for resisting bumping without paint peeling off.

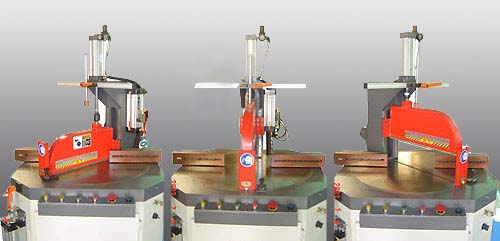

l The machine permits ± 0 ~ 45 degree cutting.
MODEL
COS-16
Cutting Angle
+45° ~ 0° ~ -45°
Sawblade sizes
16"x1"bore
Spindle speed
3600R.P.M.
Motor
2 HP
Air pressure
4-6kg/cm²
Table area
720x380mm
Table height form floor
865mm
N.W. /G.W.
400 / 500kgs
Machine dimensions ( L×W×H )
1000x880x1610mm
Packing dimensions ( L×W×H )
1120x1000x1810mm
