cut off saw+press
.jpg)
l To operate the machine, simply treadle on the foot switch, the machine will automatically perform clamping and cutting for convenient operation.
l Concealed sawblade performs upward cutting. Single or multiple workpieces can be cut simultaneously.
l While cutting, the oil mist splashes automatically for cooling and lubrication.
l Cutting feed is driven by a air/hydraulic combination cylinder for extremely stable cutting speed.
l The machine cabinet painting is baked by high temperature of 200 degree ( Powder coating ) for resisting bumping without paint peeling off.

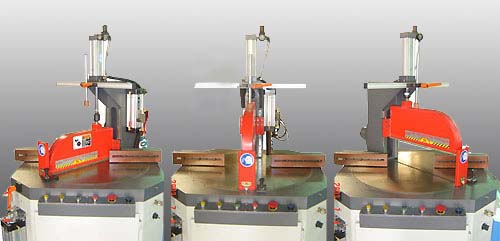

l The machine permits ± 0 ~ 45 degree cutting.
COS-24
COS-30
MODEL

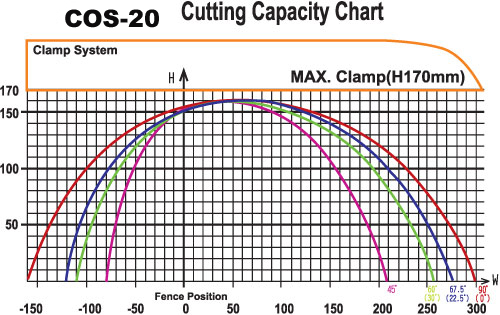

COS-20

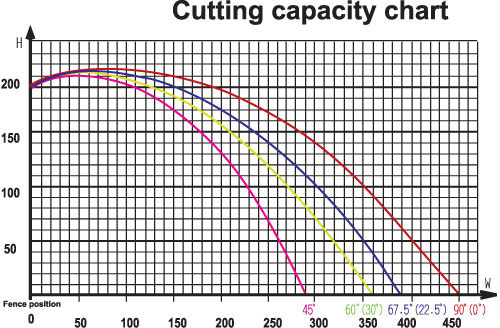

COS-24

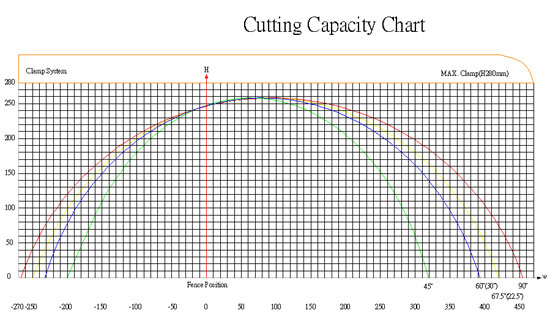

COS-30
Cutting Angle
+45° ~ 0° ~ -45°
+45° ~ 0° ~ -45°
+45° ~ 0° ~ -45°
Sawblade sizes
20"x1"bore
24"x1"bore
760MM*50MM(bore)
Spindle speed
3200R.P.M.
2000R.P.M.
1500R.P.M.
Motor
5 HP
7 1/2 HP
10 HP
Air pressure
4-6kg/cm²
4-6kg/cm²
4-6kg/cm²
Table area
920x650mm
1140x750mm
1327x640mm
Table height form floor
875mm
920mm
1070mm
N.W. /G.W.
500 / 610kgs
800 / 920kgs
1300 / 1500kgs
Machine dimensions
( L×W×H )1200x1090x1780mm
1480x1350x2100mm
1430x1400x2210mm
Packing diamesions
(L×W×H )1320x1210x1980mm
1600x1470x2260mm
1550x1520x2300mm
