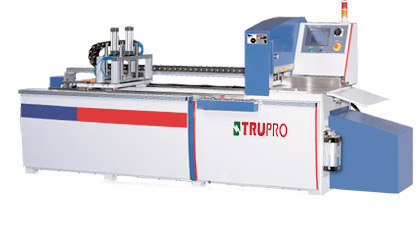

cut off saw+press

l          Automation feed, positioning. oil spraying and sawing.

l          Feed stroke 500mm (Reciprocating feed stroke up to any limit for length)

l          Concealed type sawblade performs upward cutting lor increased safety.

l          Ball screw is driven by servo motor for high accuracy. (Transmission through precision ground rack is available).

l          Equipped with NC control. PLC features extremely stable control performance. Employs CE certified control components.

l          Feed is driven by hydraulic system, providing maximum stability of cutting

l          Two sets each of held-down clamps and one set side clamps provided on the feeding system permits cutting of irregular work piece.

l          100 sets of size memory capacity. Each set allows for setting 12 sizes.

l          The computer automatically records required time and quantity for each machining, providing convenient calculation of machining cost

l          During operation, the machine provides detection for lock of material. Available to set tail length to be cut.

l          Workpieces can be stacked.

l          Maximum feed speed is of up to 60 m/min.

l          Maximum cutting rate is 4 seconds for one cutting.

l          Feed methods : 1. Stepping feed. 2. Reciprocating feed. 3. Manual feed

SUITABLE FOR CUTTING VARIOUS MATERIALS

Aluminum, Brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic, Teflon, honeycomb board, wood and other non-ferrous metals.
