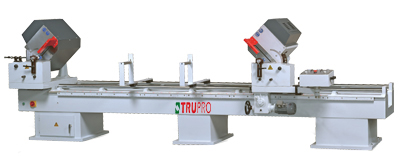

cut off saw+press
l Used for aluminum profile cutting.
l The linear guiding pair ensured steady processing accuracy.
l Saw blade rotate smoothly due to high accuracy main spindle.
l Uniform speed feeding and smooth motion due to air-draulic damping cylinder.
l It has feature of easy operation, reliable performance, advanced technique and convenient maintenance ect.
l Right head moving saw blade give accurate processing and high efficiency.
l Imported carbide saw blade give accurate processing and high efficiency.
l Two head can work together or single, when together work, one tine. can cut off the required length and angle.
Model
COS-LJZ450
Power supply
3 phase
Operation air pressure
0.4-0.6MPa
Cutting motor power
2 x 2HP
Motor rotary speed
2800 r/min
Air consumption
200 L/min
Blade specification
Ø455 x Ø25.4 x 4 x Z120
Cutting length
max3700mm / Min400mm
Cutting width
max 120mm
Cutting height
max 200mm
Cutting angle
-45º 90º 45º
Cutting angle allowance
± 5'
Cutting speed
0-3m/min
Cutting profile surface planeness
≤ 0.1mm
Cutting profile surface rougness
Ra 12.5μm
Contour dimension
4500mm x 1100mm x 1400mm
Weight
1500kg
