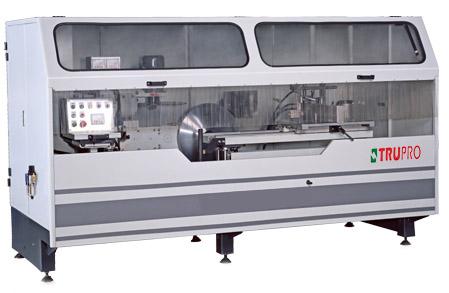

cut off saw+press
l Used for processing the end surface angle of the aluminum curtain-wall and lighting skylight profiles.
l The two saw blades can swing freely at + / -45°
l Equipped with magnetic ruler control system, realized cutting angle and worktable height digital display.
l Convenient worktable and locating device adjustment, can achieve special end surface angle processing.
Model
COS-LJK500
Spindle Motores
2×3HP
Spindle speed
2800r/min
pressure
4~6KG
cutting angle
± 45°
cutting width
150mm
cutting speed
0~ 3m/min
Sawblade sizes
Ø500mm×3.6mm×Ø25.4mm Z=120
Machine Dim.(LxWxH)
3140mm×1380mm×1800mm
Machine weight
1500kg
