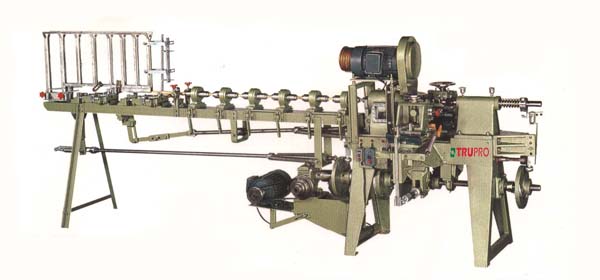

Wood Lathe
WL-15 / WL-35A
Automatic Wood Lathe

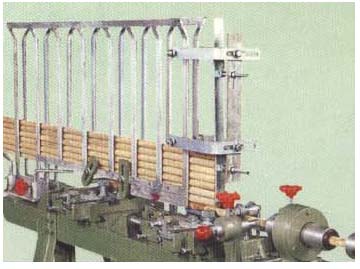

Automatic Hopper Feed:l Adjustable, hold stock diameter up to 35mm, min. width 10mm.
l Hopper height 410mm, length 1000mm.
l An auxiliary feed drive mechanism is built to compensate for pushing stock forward in case of a “slip back” is happened.
Model
WL-15
WL-35A
Working diameter
3-15mm
10-30mm
Working length
3-90mm
Production rate
15-90 cuts/min
Motor
3HP and 1HP
R.P.M.
12000rpm
7500rpm
Feed mechanism
Automatic hopper feed
Net weight
750 kg
Gross weight
850 kg
Machine dimension
3300×1120×1300mm
Package dimensions
2160×1170×1430mm
