Wood Lathe
WL-35B

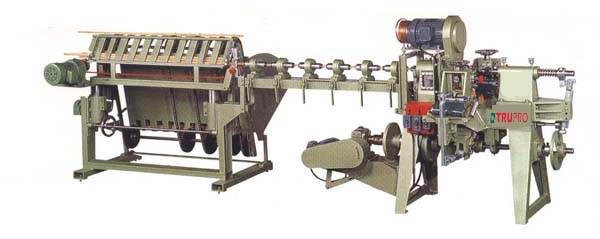

Automatic Wood Lathe
Automatic Belt Feed:
l Belt drive system fully guarantee continuity of stocks feeding.
l High smooth feeding efficiency.
l Automatically supply stocks into feed channel.
l The system never cause any problem while feeding, even stocks are not in identical length.
Production rate:
Dowel: 150pcs/min (35mm long)
Plug: 60pcs/min
Bead: 120pcs/min
Model
WL-35B
Working diameter
10-30mm
Working length
3-90mm
Production rate
15-90 cuts/min
Motor
3HP and 1HP
R.P.M.
7500rpm
Feed mechanism
Automatic hopper feed
Net weight
750 kg
Gross weight
850 kg
Machine dimension
3300×1120×1300mm
Package dimensions
2160×1170×1430mm
