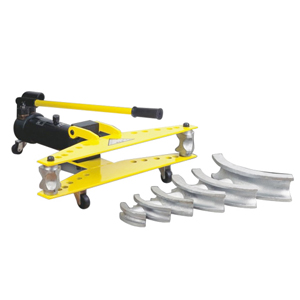

Pipe Bender

Model

486-2

486-3

486-4

Max. pressure(T))

16T

20T

23T

Max. stroke(mm)

250mm

320mm

370mm

Crimp range(mm)

Ø21.3- Ø60 mm

Ø21.3- Ø88.5 mm

Ø21.3- Ø108 mm

Bending formers(in)

1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”

1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3”

1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3”, 4”

Wall thickness of pipe

2.75-4.5mm

2.75-5mm

2.75-6mm

G.W.

47kgs

98kgs

149kgs

volume

730×320×200mm

930×400×210mm

1180×460×230mm
