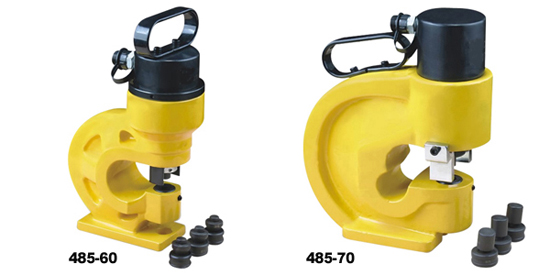

485-60 / 485-70
Hydraulic Busbar Punching Tools
l Suitable for punching holes on “L” and “H” shape iron plates, copper and aluminum busbars.
l Flat pedestal to provide steadiness in operation.
l Punch dies made of high carbon tungsten steel and not easy to wear off.
Model
485-60
485-70
Max. pressure(T))
31T
35T
aperture(in)
Ø3/
8” - Ø3/4” Ø3/
8” - Ø3/4” Max. thickness
Iron sheet:
6mm Copper busbar:
10mm Iron sheet:
8mm Copper busbar:
12mm Throat (mm)
95mm 110
G.W.
21.5kgs
37.5kgs
volume
400×250×
150mm 330×20 0×
390mm Standard dies
Ø3/
8” (11.1mm ), Ø1/2” (14.3mm ), Ø5/8” (17.5mm ), Ø3/4” (20.6mm )×4sets
