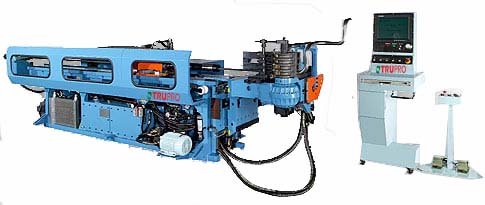

l The CNC tube benders ( Pipe bending Machine ) equipped with multi-tooling can up to 6 tooling levels. Designed for bending complex parts with “0” straight clamping lengths, as well both small and large bending radiuses, it satisfies even the most demanding applications for the automotive, furniture, healthcare, among other industries.
l The MR series allows up to 6 draw bending stacks and “0” clamping lengths in bending.
l The MRV series offers small radius bending + roll bending + 1D bending in the same machine.
6 electric servo controlled axis
- Feeding (Y)
- Rotation ( B )
- Horizontal Head Movement ( X )
- Bending ( C )
- Pressure Die Assist ( V1)
- Vertical Head Movement ( V2 )Model
TB-63-6A-MR / TB-63-6A-MRV
Mild steel capacity
Ø63.5mm×2.5t
Stainless capacity
Ø63.5mm×1.9t
Die arrangement
~Ø25.4mm (6 stacks)
Ø25.4~ Ø31.75mm(5 stacks)
Ø31.75~ Ø44.45mm(4 stacks)
Ø44.45~ Ø63.5mm(3 stacks)
Bending radius
Draw bending
Round tube
1.5D~5D
Rectangular tube
2D~5D
Roll bending
Round tube
6D~∞(MRV)
Rectangular tube
7D~∞(MRV)
1D bending
NO (MR) / YES (MRV)
Max. tube length with mandrel
3850mm
Max. draw bending radius
250mm
Max. bending radius difference
30mm
Bending accuracy
±0.1∘
Rotation accuracy
±0.1∘
Feeding accuracy
±0.1mm
Machine dimension
5100×1600×1500mm
Gross weight
4800kgs
