Shaper-Copy Shaper

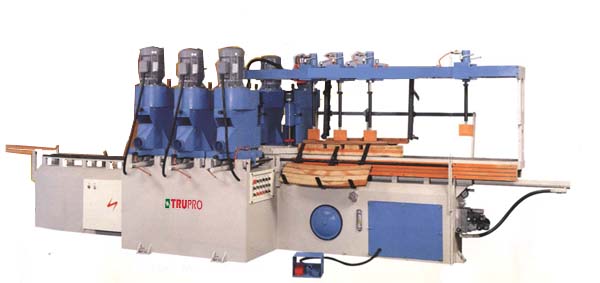

l This 6 cutter-head fully auto double side copy shaping and sanding machine gives extremely high productivity.
l The third cutter-head can be equipped with a sanding belt for fast sanding after cut.
l All machine motions are controlled by a PLC for maximum convenience of operation.
l Suitable for cutting large curvatures, concave and hard-to-process workpieces.
Model
CS-85-6TA
Working capacity (L×D×Thk)
1500×360×140 mm
Main spindle power
7.5HP×2, 5HP×2, 5HP×2
Main spindle diameter
40 mm
Hydraulic power
7HP×1
Revolution speed
9500 rpm
Required air pressure
6 kg/cm2
Machine size
5800×2080×1950 mm
Measurements
5900×2200×2060 mm
N.W./G.W.
3650/4000 kgs
