Shaper-Copy Shaper
TP-12120 / 12100
Auto Copy Shaper

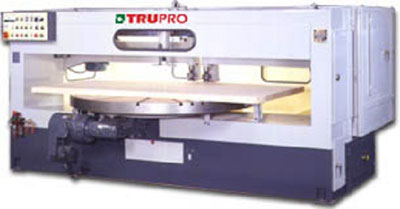

TP-12120 - Maximum diameter of cut
- Dia.120".
- Single table.
- Double cutterheads
TP-12100 - Maximum diameter of cut
- Dia.100".
- Single table.
- Double cutterheads
Model TP12120 TP12100 Range of cutting diameter : 28" - 120" 24" - 100" Maximum rectangular cutting (2:1) : 107.4" x 53.7" 89.2" x 44.6" Table diameter : 72" 72" Table rotation speed (Infinitely variable) : 0.5 - 3RPM 0.5 - 3RPM Spindle speed : 9000RPM 9000RPM Spindle diameter (interchangeable) : 1",30mm,11/4"
(One dia funished)1",30MM 11/4"
(One dia funished)Cutter size : 100mm 100mm Follower roller diameter : 100mm 100mm Table drive motor : 3HP x 1 3HP x 1 Spindle drive motor : 15HP x 2 10HP x 2 Net weight : 5100kgs 4000kgs Gross weight : 6150kgs 4900kgs Packing size : 156" x 91" x 81" 130" x 90" x 81"
