Shaper-Copy Shaper

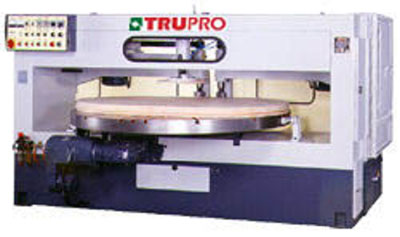

TP-12180 / 12160
Auto Copy Shaper
TP-12180 - Maximum diameter of cut
- Dia.80".
- Single table.
- Double cutterheads
TP-12160 - Maximum diameter of cut
- Dia.60".
- Single table.
- Double cutterheads
Model TP12180 TP12160 Range of cutting diameter 20" - 80" 16" - 60" Maximum rectangular cutting (2:1) 71.4" x 35.7" 53.4" x 26.7" Table diameter 62" 46" Table rotation speed (Infinitely variable) 0.5 - 3RPM 0.5 - 3RPM Spindle speed 9000RPM 9000RPM Spindle diameter (interchangeable) 1",30mm,1-1/4"
(One dia funished)1",30MM 1-/4"
(One dia funished)Cutter size 100mm 100mm Follower roller diameter 100mm 100mm Table drive motor 2HP x 1 2HP x 1 Spindle drive motor 10HP x 2 10HP x 2 Net weight 3050kgs 2350kgs Gross weight 3850kgs 2850kgs Packing size 108" x 89" x 77" 91" x 76" x 81"
