Shaper-Copy Shaper

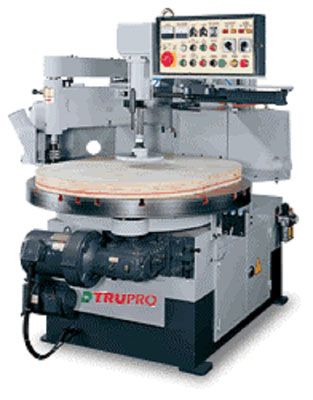

TP-1172 / 1162
Auto Copy Shaper

  • Maximum diameter of cut

    • TP-1172: 72"
    • TP-1162: 62"

    Single table
    Single cutterhead

  • Model TP-1172 TP-1162
    Range of cutting diameter 10" - 72" 10" - 62"
    Maximum rectangular cutting (2:1) 64.2" x 32.1" 55.2" x 27.6"
    Table diameter 46" 46"
    Table rotation speed (Infinitely variable) 1 - 3RPM 1 - 3RPM
    Spindle speed 9000RPM 9000RPM
    Spindle diameter (interchangeable) 1",30mm,1-1/4"
    (One dia funished)    		 1",30MM 1-/4"
    (One dia funished)
    Cutter size 100mm 100mm
    Follower roller diameter 100mm 100mm
    Table drive motor 2HP x 1 2HP x 1
    Spindle drive motor 10HP x 2 10HP x 2
    Net weight 1450kgs 1350kgs
    Gross weight 1900kgs 1770kgs
    Packing size 86" x 75" x 81" 73" x 66" x 80"
