Shaper-Copy Shaper

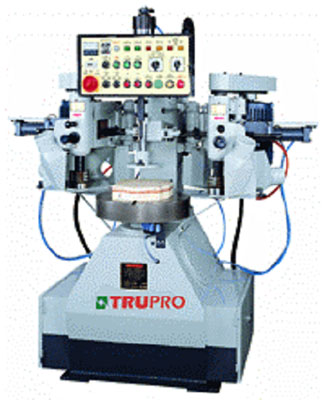

TP-1236 / 1228
Auto Copy Shaper

  • Maximum diameter of cut

    • TP-1236: 36"
    • TP-1228: 28"

    Single table
    Single cutterhead

  • Model TP-1236 TP-1228
    Range of cutting diameter 4" - 36" 3" - 28"
    Maximum rectangular cutting (2:1) 32" x 16" 25" x 12.5"
    Table diameter 26" 18"
    Table rotation speed (Infinitely variable) 1.5 - 4RPM 1.5 - 4RPM
    Spindle speed 8000RPM 8000RPM
    Spindle diameter (interchangeable) 1",30mm,1-1/4"
    (One dia funished)    		 1",30MM 1-/4"
    (One dia funished)
    Cutter size 100mm 100mm
    Follower roller diameter 100mm 100mm
    Table drive motor 1HP x 1 1HP x 1
    Spindle drive motor 7-1/2HP x 2 7-1/2HP x 2
    Net weight 1070kgs 960kgs
    Gross weight 1390kgs 1190kgs
    Packing size ( L x W x H ) 73" x 64" x 80" 66" x 58" x 78"
