Shaper-Copy Shaper

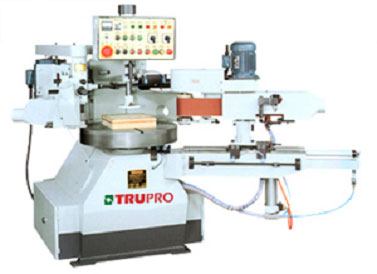

TP-1162S / 1136S / 1128S
Auto Copy Shaper
  • Maximum diameter of cut
    • TP-1162S: 62"
    • TP-1136S: 36"
    • TP-1128S: 28"
    Single table
    Single cutterhead    		 Sanding belt size: 5" x 70"
    Sanding belt speed (2 speeds): 400 / 870 M/min
    Sanding belt drive motor: 1HP
    Contact wheel diameter: 110mm dia.
    Sanding head vertical adjustment: 30mm
    Spindle diameter: 1" dia
  • Model TP-1162S TP-1136S TP-1128S
    Range of cutting diameter 10" - 62" 4" - 36" 4" - 28"
    Range of sanding diameter 16" - 62" 8" - 36" 6" - 28"
    Maximum rectangularcutting (2:1) 55.2" x 27.6" 32" x 16" 25" x 12.5"
    Table diameter 46" 26" 18"
    Spindle speed 8000RPM 8000RPM 8000RPM
    Table rotation speed(Infinitely variable) 1 - 3RPM 1.5 - 4RPM 1.5 - 4RPM
    Spindle speed 9000RPM 8000RPM 8000RPM
    Spindle diameter(interchangeable) 1",30MM 1-1/4"
    (One dia funished)    		 1",30MM 1-1/4"
    (One dia funished)    		 1",30MM 1-1/4"
    (One dia funished)
    Cutter size 100mm 100mm 100mm
    Follower roller diameter 100mm 100mm 100mm
    Table drive motor 2HP x 1,
    1-1/2HP x 1    		 1HP x 1,
    1-1/2HP x 1    		 1HP x 1,
    1-1/2HP x 1
    Spindle drive motor 10 HP x 1 7- 1/2 HP x 1 7- 1/2 HP x 1
    Spindle belt size 5" x 70" 5" x 70" 5" x 70"
    Net weight 1500kgs 970kgs 840kgs
    Gross weight 1970kgs 1220kgs 1050kgs
    Packing size ( L x W x H ) 92" x 85" x 80" 88" x 76" x 77" 80" x 68" x 77"
