Shaper-Copy Shaper

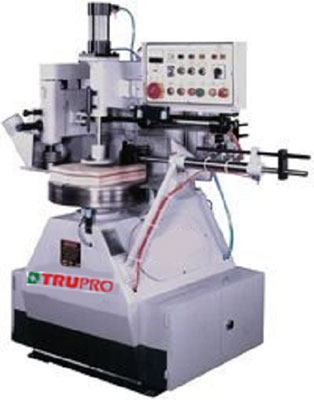

TP-1136P / 1128P
Auto Copy Shaper

  • Maximum diameter of cut

    • TP-1136P: 36"
    • TP-1128P: 28"

    Single table
    Single cutterhead
    With side pressure plate

  • Model TP-1136P TP-1128P
    Range of cutting diameter 4" - 30" 3" - 22"
    Maximum rectangular cutting (2:1) 26.8" x 13.4" 19.6" x 9.8"
    Table diameter 26" 18"
    Table rotation speed (Infinitely variable) 1.5 - 4RPM 1.5 - 4RPM
    Spindle speed 8000RPM 8000RPM
    Spindle diameter (interchangeable) 1",30mm,1-1/4"
    (One dia funished)    		 1",30MM 1-/4"
    (One dia funished)
    Cutter size 100mm 100mm
    Follower roller diameter 100mm 100mm
    Table drive motor 1HP x 1 1HP x 1
    Spindle drive motor 7-1/2HP x 2 7-1/2HP x 2
    Net weight 950kgs 830kgs
    Gross weight 1240kgs 1060kgs
    Packing size ( L x W x H ) 81" x 74" x 77" 68" x 64" x 77"
