Shaper-Copy Shaper

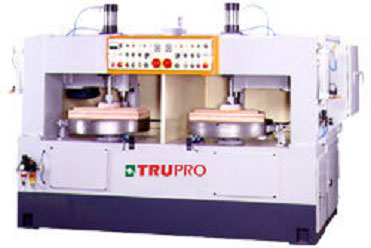

TP-2236 / 2228
Auto Copy Shaper

  • Maximum diameter of cut

    • TP-2236: 36"
    • TP-2228: 28"

    Double table
    Double cutterhead

  • Model TP-2228 TP-2236
    Range of cutting diameter 3" - 28" 4" - 36"
    Maximum rectangular cutting (2:1) 25" x 12.5" 32" x 16"
    Table diameter 18" 26"
    Table rotation speed (Infinitely variable) 1.5 - 4RPM 1.5 - 4RPM
    Spindle speed 8000RPM 8000RPM
    Spindle diameter (interchangeable) 1",30mm,1-1/4"
    (One dia funished)    		 1",30MM 1-/4"
    (One dia funished)
    Cutter size 100mm 100mm
    Follower roller diameter 100mm 100mm
    Table drive motor 1HP x 2 1HP x 2
    Spindle drive motor 7-1/2HP x 2 7-1/2HP x 2
    Net weight 1750kgs 2050kgs
    Gross weight 2030kgs 2400kgs
    Packing size ( L x W x H ) 114" x 59" x 80" 122" x 61" x 82"
