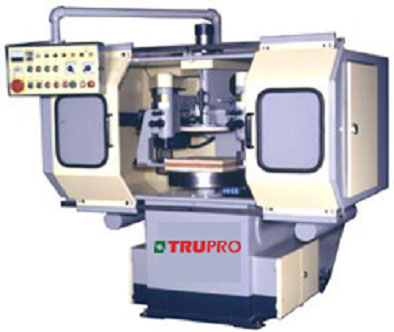

Shaper-Copy Shaper

TP-1236N / 1136N / 1228N / 1128N
Auto Copy Shaper

  • Maximum diameter of cut

    • TP-1236N: 36"
    • TP-1228N: 28"
    • TP-1136N: 36"
    • TP-1128N: 28"

    Single table
    Single cutterhead or Double cutterhead

  • Model TP-1236N TP-1136N TP-1228N TP-1128N
    Range of cutting diameter 4" - 36" 4" - 36" 3" - 28" 3" - 28"
    Maximum rectangularcutting (2:1) 32" x 16" 32" x 16" 25" x 12.5" 25" x 12.5"
    Table diameter 26" 26" 18" 18"
    Table rotation speed
    (Infinitely variable)    		 1.5-4 RPM 1.5-4 RPM 1.5-4 RPM 1.5-4 RPM
    Spindle speed 8000RPM 8000RPM 8000RPM 8000RPM
    Spindle diameter(interchangeable) 1",30MM 1-1/4"
    (One dia funished)    		 1",30MM 1-1/4"
    (One dia funished)    		 1",30MM 1-1/4"
    (One dia funished)    		 1",30MM 1-1/4"
    (One dia funished)
    Cutter size 100mm 100mm 100mm 100mm
    Follower roller diameter 100mm 100mm 100mm 100mm
    Table drive motor 1HP x 1, 1HP x 1 1HP x 1 1HP x 1
    Spindle drive motor 7-1/2 HP x 2 7-1/2 HP x 1 7- 1/2 HP x 2 7- 1/2 HP x 1
    Net weight 1250 kgs 1050 kgs 1120 kgs 940 kgs
    Gross weight 1500kgs 1300kgs 1320kgs 1140kgs
    Packing size ( L x W x H ) 91" x 77" x 90" 91" x 77" x 90" 83" x 65" x 90" 83" x 65" x 90"
