Shaper-Copy Shaper

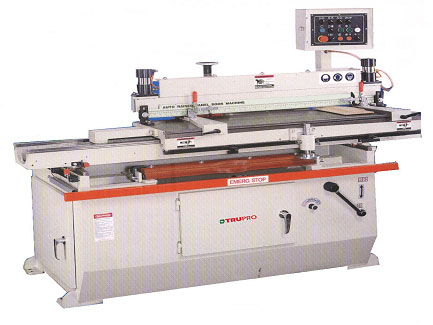

CS-1000-AT
Auto Raised Panel Door Machine
All 5 components of a raise panel door can be produced in less than 5 minutes by 1 operator
Door Templates
The door templates include one panel arch and four matching rails for different door size. By simply raising or lowering the roller to the required template level, an arched panel or rail an be produced
Stackable Spindle
Stackable spindle is located at three different cutter locations. At the touch of a switch the cutter can be fixed to spindle using the upper and lower screw, thereby elimination set-up time.Model CS-1000AT Min Spindle Driving Power 10HP Pump Motor 1HP Main Spindle Revolving Speed 6000~7000 RPM Main Spindle Dia. Ø1-1/4" (30 m/m ) Driven Wheel Dia. Ø100m/m Max. Working Length 1000 m/m Machine size (mm) 1950 x 950 x 1450 m/m Packing dimensions (mm) 2030 x 1000 x 1600 m/m N.W. / G.W. 950 / 1150 KGS
