Shaper-Copy Shaper

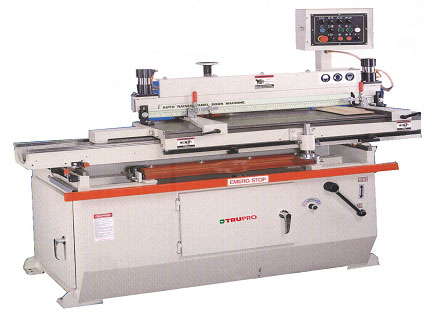

CS-1400-AT
Auto Raised Panel Door Machine

  • All 5 components of a raise panel door can be produced in less than 5 minutes by 1 operator
    Door Templates
    The door templates include one panel arch and four matching rails for different door size. By simply raising or lowering the roller to the required template level, an arched panel or rail an be produced
    Stackable Spindle
    Stackable spindle is located at three different cutter locations. At the touch of a switch the cutter can be fixed to spindle using the upper and lower screw, thereby elimination set-up time.
  • Model CS-1400AT
    Min Spindle Driving Power 10HP
    Pump Motor 1HP
    Main Spindle Revolving Speed 6000~7000 RPM
    Main Spindle Dia. Ø1-1/4" (30 m/m )
    Driven Wheel Dia. Ø100m/m
    Max. Working Length 1400 m/m
    Machine size (mm) 2350 x 950 x 1450m/m
    Packing dimensions (mm) 2450 x 1000 x 1600m/m
    N.W. / G.W. 1020 / 1220kg
