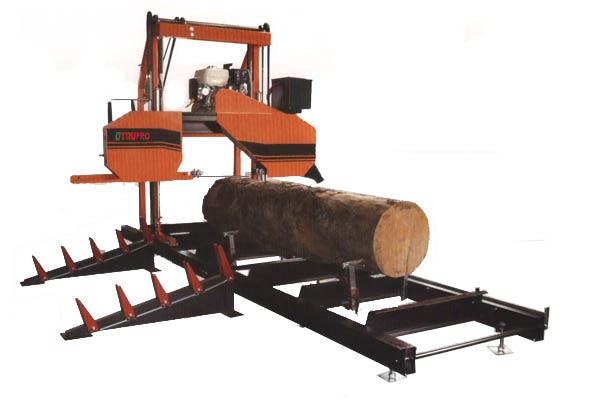

Bandsaw- Horizontal
l Worker starts the machine and manually push the sawing head along the log to cut.
l Accuracy can not be confirmed as it depends on the worker’s pushing speed.
l
l Quickly adjusted the head up and down to change board thickness by a gear box.
l Four integral levelers for section quick setup.

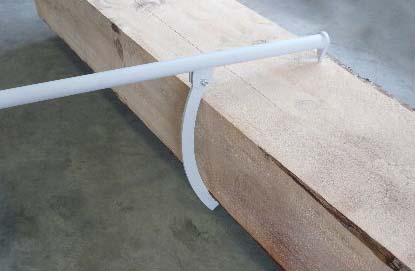

Cant Hoods(Log clamp)
(Optional)

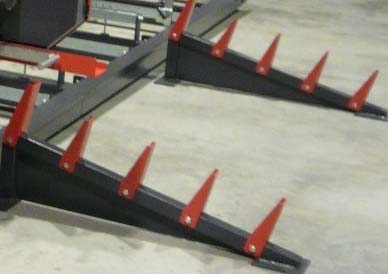

Loading Rack
(Optional)
Model
LOG-700GX
Max. log diameter
700 mm
Max. opening between blade guides
650 mm
Max. elevation of blade
680 mm
Min. blade height from support beam
25 mm
Max. log length (standard)
3.1 M
Track section
1.95 M×2 pcs
Min. log length
0.6 M
Band wheel motor
270c.c. engine (9.3HP)
Elevation motor (by inverter)
-
Feed motor (by inverter)
-
Feed speed
-
Digital
-
Band wheel diameter
480 mm
Band wheel width
23 mm
Sawblade
4010×32 (35)mm-7/8” tooth
Kerf thickness
3 mm
Sawblade speed
21.5 m/s
Machine dimension
3990×2000×2100 mm
Packing dimension
Bandsaw--1130×2200×2250 mm
Weight(standard model)
460 / 560 kgs
Track section
1.95M / each (Optional): 130 kgs
