Bandsaw- Horizontal

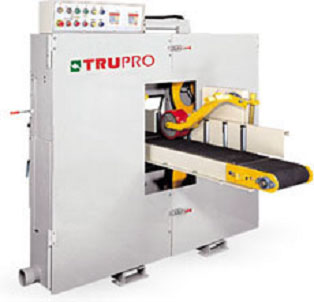

HSW-66
Hydraulic Two Head Horizontal Band Resaw
Features:
- Variable feed speed suits all types of wood materials.
- The saw wheels are dynamically balanced, ensuring extremely smooth operation.
- Great cutting capacity up to 12"×12".
- Saw blade cutting thickness is motor driven. Digital thickness controller provides accurate positioning.
- Blade tension is controlled by hydraulic cylinder.
- Infeed pressure wheel is spring loaded, ensuring smooth, stable feeding.
- Powerful 20HP saw motor provides heavy duty cutting performance.
Model HSW-66 Max. workpiece size 12" x 12" Distance from upper blade to conveyor table 12 to 180 mm(1/2"~7") Distance from lower blade to conveyor table 6 to 130 mm(1/4"~5") Distance between two blades 13 to180 mm(1/2"~7") Conveyor belt size 285×5480 mm(11"×215-3/4") Saw wheel diameter Ø28"×W 7/8" Feed speed 0~25 m/min Saw blade size 168"×1"×0.035" Saw wheel motor 20 HP Hydraulic system motor 2 HP Hydraulic pressure 75 kg/cm2 Dust hood outlet dia. Ø4"×2 Net weight 1546 kgs Packing dimensions 2790×560×750 mm
