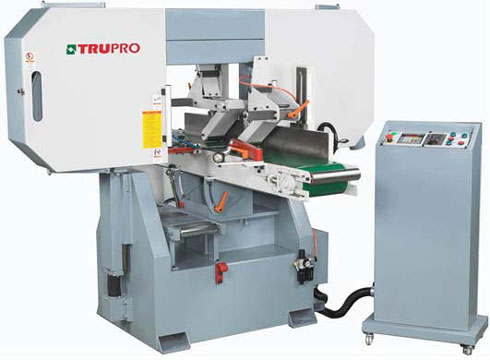

Bandsaw- Horizontal

HSW-300
Horizontal Band Resaw

  • Standard Equipment:

    • MAIN MOTOR 15 OR 20HP
    • BLADE LIFT DIGITAL CONTROL
    • FREQUENCY INVERTER CONTROLED CONVEYOR FEED
    • FEED CONVEYOR TILT 0°- 30°
    • 2"SAW BLADE
    • TOOL BOX

  • Model



    HSW-300



    Maximum Cutting Capacity (WxH)



    12"x 10 "(300x250 mm)



    Min. Cut Piece



    2 mm



    Saw Wheel Diameter



    Standard: 28"x 2"

    (Optional: 28"x 3" , 32"x3", 32"x4", 36"x3", 36"x4")

    Sawblade Length



    183" 7/8"~184 1/4"(4670~4680 mm)



    Sawblade Width



    2"(50.8mm)  (Optional: 3", 4" )



    Sawblade Speed



    6000FPM



    Conveyor Belt Sizes (W x L)



    10 5/8" x 165 1/2" (270 x 4200 mm)



    Feed Speed (variable)



    0~70 m/min



    Feed Conveyor Tilt



    0°~30°



    Conveyor Height From Floor



    40"(1016 mm)



    Saw Wheel Motor



    20 HP



    Blade Lift Motor



    1/2 HP



    Dust Hood Outlet Diameter



    ø4"



    Machine Dimensions (L x W x H)



    88" x 85 3/4"(2235 x 2180 x 1881 mm)



    Packing Dimensions (L x W x H)



    90 1/2" x 88" x 80"(2300 x 2235 x 2032 mm)



    Net Weight



    1200 kgs



    Gross Weight



    1400 kgs
