Bandsaw- Horizontal
HSW-400

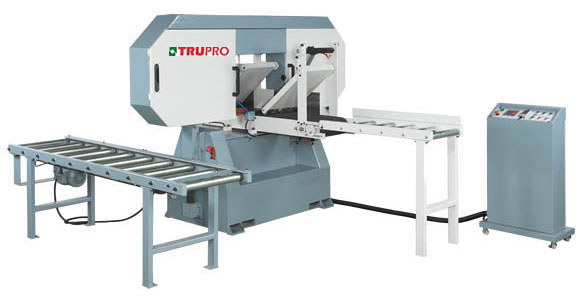

Horizontal Band Resaw
Model HSW-400 MAXIMUM CUTTING CAPACITY(W x H) 16-1/2" x 16-1/8" (420 x 410 mm) DISTANCE FROM BLADE TO CONVEYOR 1/4" x 10- 5/8" (5-270mm) MINIMUM CUT THICKNESS 5 mm SAW WHEEL DIAMETER 32" x 2 (800 mm x 2) SAWBLADE LENGHT 5860 ~ 5870 mm SAWBLADE WIDTH 2" SAWBLADE SPEED 6150 FPM CONVEYOR BELT SIZES (W x L) 16" x 165- 1/2" (400 x 4200 mm) FEED SPEED (VARIABLE) 0" ~ 40" m/min RETURN CONVEYOR SIZE 100-3/8" x 24-3/4" x 32 1/2" (2550 x 630 x 825 mm) CONVEYOR HEIGHT FROM FLOOR 40" (1016 mm) RETURN CONVEYOR MOTOR / INVERTER MOTOR 1HP 3Ø / 2HP 3Ø SAW WHEEL MOTOR 30HP BLADE LIFT MOTOR 1/2 HP DUST HOOD OUTLET DIAMETER 100 mm x 2 (4" x 2) MACHINE DIMENSIONS (L x W x H) 128" x 130" x 79" (3250 x 3300 x 2000 mm) PACKING DIMENSIONS (L x W x H) 108" x 89" x 87" (2750 x 2250 x 2200 mm) NET WEIGHT / GROSS WEIGHT 1960 kgs ( 4312 lbs ) / 2160 kgs ( 4752 lbs) Design and specifications are subject to change without prior notice.
