Spot Welding machine
lNew stroke variable pneumatic cylinder. Built-in lubrication-free bearing suits high speed & long operation period. Lower air consumption, faster welding reaction.
l Precision digital IC control circuit no connection joints, simplified programming operations with better welding results.
l With our own welding control, it is easy to assemble with automatic welding lines from capability of applying multiple welding units (15 units max.) according to different requirements.
lToughest machine body with water circulation cooling system for high speed continual operation.
l SCR circuit switch with current charge controller, perform best durability reliability & welding quality.
Model
Rated capacity (KVA)
Voltage
(V)
Max. pressure (Kg)
Max. short circuit current (A)
Depth of throat (mm)
Single-
point
WE-300SA
30
220V/380V
500
13000
450
WE-400SA
40
220V/380V
500
15000
450
Muti-
point
WE-500SA
50
220V/380V
800
22000
300

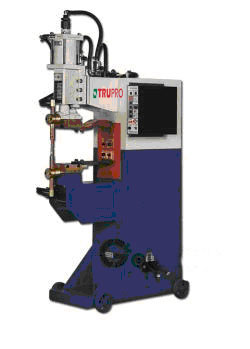

WE-600SA
60
220V/380V
800
24000
300
WE-800SA
80
220V/380V
800
28000
300
WE-1000SA
100
220V/380V
1000
34000
300
WE-1200SA
120
220V/380V
1000
38000
300
WE-1500SA
150
220V/380V
1200
40000
300
WE-2000SA
200
220V/380V
1500
48000
300
