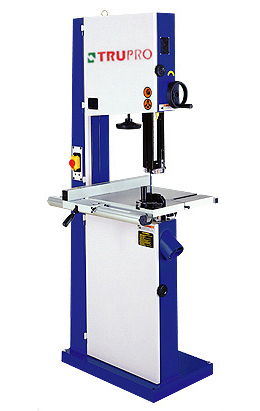

Bandsaw- Vertical

Model

WBS-4800

Motor

2HP(1.5KW)

Table Size

19" X 19"
(480 x 480mm)

Wheel Size

19"(480mm)

Cutting Height

12"(300mm)

Max. Cutting Width

18-1/4"
(462mm)

Max. Cutting (Rip Fence)

16-5/8"
(422mm)

Saw Blade Length

143"
(3632mm)

Saw Blade Width

3/8" to 1" (9.5mm to 25.4mm)
(Standard 3/4")

Saw Blade Speed

(3700/1700sfpm)
(1130/520 m/min)

Table Tilting

Left-10^o / Right-45^o 20^o (CE)

Table Height From Ground

37 1/2" (950mm)

Dust Chute Diameter

4"(100mm) X 2

Machine Size (LXWXH)

36 x 30 x 78"
(920 x 770 x 1990mm)

Packing Size (LXWXH)

34 x 20 x 85"
(870 x 510 x 2170mm)

N.W/G.W.

319 / 383 lbs
(145 / 174 kgs)

Ctn Qty / 20'/40'

27 sets / 56 sets
