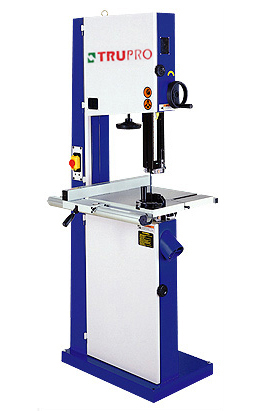

Bandsaw- Vertical

Model

WBS-5300

Motor

2HP.3HP(1.5KW,2.25KW)

Table Size

21" X 21"
(530 x 530mm)

Wheel Size

21"(530mm)

Cutting Height

12"(300mm)

Max. Cutting Width

20-1/4"
(514mm)

Max. Cutting (Rip Fence)

18-5/8"
(474mm)

Saw Blade Length

152"
(3861mm)

Saw Blade Width

1/8" to 1" (9.5mm to 25.4mm)
(Standard 3/4")

Saw Blade Speed

(4000/1900sfpm)
(1220/580 m/min)

Table Tilting

Left-10^o / Right-45^o 20^o (CE)

Table Height From Ground

37 1/2" (950mm)

Dust Chute Diameter

4"(100mm) X 2

Machine Size (LXWXH)

40 x 31 x 80"
(1020 x 790 x 2040mm)

Packing Size (LXWXH)

37 x 20 x 87"
(950 x 510 x 2270mm)

N.W/G.W.

359 / 431 lbs
(163 / 196 kgs)

Ctn Qty / 20'/40'

24 sets / 50 sets
