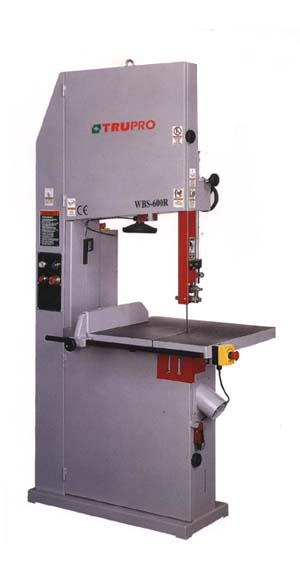

Bandsaw- Vertical
l The side guide is micrometrically adjustable providing convenient adjustment for narrow blades.
l The saw wheels are laminated with rubber for accurate blade tracking and slippage prevention.
l The table is made of cast iron and the surface is precision ground. The table can tilt to a maximum of 45 degrees, front downward, for bevel cuts.
l Blade tension can be conveniently adjusted by means of a handwheel. A tension scale allows the operator to correctly adjust the tension for different blade widths.
l The cast iron top and bottom saw wheels are precision machined and dynamically balanced for smooth running.
l The see-through guard provides operator safety and protection.
l The foot brake permits the quick shut down of machining operations.
l The heavy gauge steel frame ensures stable and vibration free cutting.
l 4” diameter exhaust chute supplied as standard.
Model
WBS-450R
WBS-500R
Saw Wheel Diameter
450 mm(18")
500 mm(20")
Table size
610 x 500 mm
(23 1/2" x 19")
680 x 520 mm
(26 3/4" x 20 1/2")
Table tilting
0° ~ 45°
0° ~ 45°
Throat capacity
430 mm (17")
475 mm (18 3/4")
Height Capacity
245 mm (9 3/8")
300 mm (11 7/8")
Width of wheel
30 mm
35 mm
Blade speed
995 RPM (4685 F.P.M)
850 RPM (4450 F.P.M)
Blade length
3855mm-3885mm (151 3/4"-153")
3969mm-3999mm (156 1/4"-157 1/2")
Blade width
6.3~32mm (1/4”~1-1/4”)
6.3~32mm (1/4”~1-1/4”)
Dust hood diameter
Ø4" x 1
Ø4" x 1
Motor
2 HP
2 HP
Net weight
210 kg
280 kg
Gross Weight
280 kgs
350 kgs
Machine Size (L x W x H)
860x560x1890 mm
970x700x1880 mm
Packing Size (L x W x H)
1970x560x890 mm
1970x580x1010 mm
Model
WBS-600R
WBS-700R
Saw Wheel Diameter
600 mm(24")
700 mm(28")
Table size
800 x 605 mm
(31 1/2" x 23 7/8")
1000 x 700 mm
(39 3/8" x 27 5/8")
Table tilting
0° ~ 45°
0° ~ 45°
Throat capacity
580 mm (22 7/8")
678 mm (26 3/4")
Height Capacity
350 mm (13 3/4")
420 mm (16 1/2")
Width of wheel
35 mm
40 mm
Blade speed
710 RPM (4458 F.P.M)
680 RPM (4980 F.P.M)
Blade length
4410mm-4480mm (173-5/8"-176 3/8")
5100mm-5180mm (202"-204")
Blade width
6.3~32mm (1/4”~1-1/4”)
6.3~32mm (1/4”~1-1/4”)
Dust hood diameter
Ø4" x 1
Ø4" x 1
Motor
3 HP
5 HP
Net weight
315 kg
450 kg
Gross Weight
450 kgs
600 kgs
Machine Size (L x W x H)
1060x800x2070 mm
1330x900x2290 mm
Packing Size (L x W x H)
2160x630x1100 mm
2380x720x1210 mm
