Bandsaw- Vertical
l Specially designed bakelite fitted on the blade guide assembly giving rigid, positive side support.
l The table is made of cast iron and the surface is precision ground. The table can tilt to a maximum of 45 degrees, front downward, for bevel cuts.
l Blade tension can be conveniently adjusted by means of a handwheel. A tension scale allows the operator to correctly adjust the tension for different blade widths.
l The cast iron top and bottom saw wheels are precision machined and dynamically balanced for smooth running.
l Crown shaped wheel surface provides added stability of blade.
l The see-through guard provides operator safety and protection.
l The foot brake permits the quick shut down of machining operations.
l The heavy gauge steel frame ensures stable and vibration free cutting.
l 4” diameter exhaust chute supplied as standard.

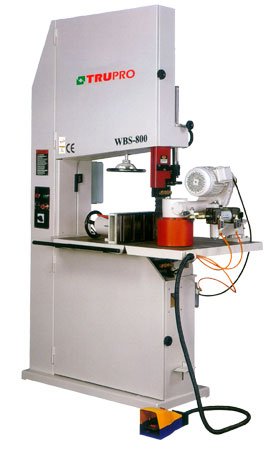

Picture shown pneumatic power feeder is optional
Model
WBS-600H
WBS-700H
WBS-800H
Saw Wheel Diameter
600 mm(24")
700 mm(28")
800 mm(32")
Table size
800 x 605 mm
(31 1/2" x 23 7/8")
1000 x 700 mm
(39 3/8" x 27 5/8")
1150 x 800 mm
(45 1/4" x 31 1/2")
Table tilting
0° ~ 45°
0° ~ 45°
0° ~ 30°
Throat capacity
580 mm (22 7/8")
678 mm (26 3/4")
778 mm (30 5/8")
Height Capacity
350 mm (13 3/4")
420 mm (16 1/2")
390 mm (15 3/8")
Width of wheel
68 mm
75 mm
90 mm
Blade speed
710 RPM (4458 F.P.M)
600 RPM (4396 F.P.M)
600 RPM (5024 F.P.M)
Blade length
4394mm-4454mm (173"-175 3/8")
5100mm-5150mm (200 3/4"-202 3/4")
5458mm-5515mm (216"-217 1/8")
Blade width
75mm (3")
75mm (3")
100mm (4")
Dust hood diameter
Ø4" x 2
Ø4" x 2
Ø4" x 2
Motor
5 HP
7.5 HP
15 HP
Net weight
340 kg
500 kg
665 kg
Gross Weight
450 kgs
650 kgs
880 kgs
Machine Size (L x W x H)
1060x800x2070 mm
1330x900x2290 mm
1500x930x2420 mm
Packing Size (L x W x H)
2160x630x1100 mm
2380x720x1210 mm
2530x850x1410 mm
