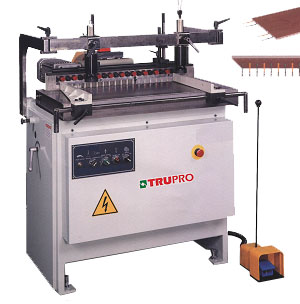

Boring Machine
DB-21T / 27T / 35T
Single Unit Boring Machine
FEATURES:
- The machine is constructed of single line horizontal boring unit.
- The boring unit can be changed from horizontal to vertical drilling by pneumatic setting.
- The boring unit can be tilted manually for angular drilling.
- Entire boring cycle can be fast and conveniently accomplished by pressing on the foot switch.
- Drill feed speed can be conveniently adjusted on control panel.
- Standard furnished with 27-spindle boring head (DB-27T) , or 35-spindle boring head (DB-35T) .
- Two fences provides convenient positioning of the workpiece.
- Mechanical digital readouts are provided for such boring unit, providing accurate adjustment.
- The speed stabilizer is available providing smooth feeding against the workpiece.
- The depth of drilling is controlled by six boring depths selector.
- Fences: Two fences are provided or drilling small and big panels. *Two fences are provided for drilling small 4 adjustable stoppers for repetitive drilling operations.
- Quickly chucks provide confide convenient fitting and dismantling for boring bits. Standard attached with 1/3 pcs.
Model DB-21T DB-27T DB-35T Max. distance between center 32mm 32mm 32mm Number of spindle per boring head 21 27 35 Max. drilling depth 75mm 75mm 75mm Boring head adjustment 0°~90° 0°~90° 0°~90° Table size 872 x 490mm 1070 x 490mm 1325 x 490mm Spindle speed 2800rpm 2800rpm 2800rpm Motor 2.5HP 2.5HP 2.5HP x 2 N.W./G.W. 350kgs/430kgs 400kgs/480kgs 550kgs/680kgs Machine size 968 x 820 x 1220mm 1220 x 820 x 1370mm 1470 x 820 x 1250mm Packing size 1143 x 889 x 1372mm 1270 x 889 x 1372mm 1550 x 889 x 1372mm
