Boring Machine

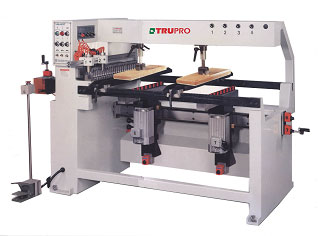

DB-63T
Three Unit Boring Machine

  • FEATURES:

    • Combines single horizontal and two vertical boring units in a machine for high efficiency drilling operations.
    • The vertical boring unit can be set at 90 for cross drilling operations.
    • Boring unit can be operated simultaneously or individually.
    • Entire boring cycle can be fast and conveniently accomplished by pressing on the foot switch.
    • Standard furnished with 21-Spindle on horizontal boring head, and each 21-Spindle on the two or three vertical boring heads.
    • Mechanical digital readouts are provided for each boring unit, providing accurate adjustment.
    • The speed stabilizer is available providing smooth feeding against the workpiece.
    • The air operated stoppers provides conveniently repetitive drilling operations.
    • Quickly chucks provide convenient fitting and dismantling for boring bits. Standard attached with 1/3pcs.
  • Model DB-63T
    Max. distance between center 32mm
    Number of spindle per boring head 21 + 21 + 21
    Max. drilling depth 80mm
    Total motor power 2HP x 3
    Spindle speed 2800rpm
    Max. distance vertical head 1100mm
    N.W./G.W. 620kgs/730kgs
    Machine size 2000 x 1260 x 1300mm
    Packing size 2235 x 1320 x 1575mm (88" x 52" x 62")
