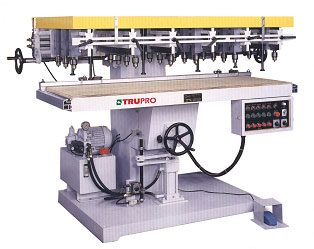

Boring Machine

BD-10L /DB-20L
Boring Machine

  		•
    1/2" Chuck spindle
    3500 RPM    		 3/8" Chuck spindle

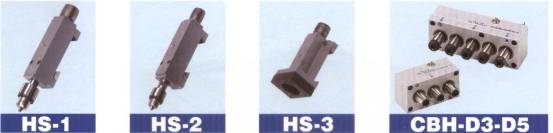

    4500 RPM    		 Boring head use
    spindle    		 PITCH:16mm~32mm available
  • Model DB-10L DB-20L
    Spindle motor 2HP×2 2HP×4
    Spindle speed 1/2- 3500 RPM
    3/8- 4000 RPM    		 1/2- 3500 RPM
    3/8- 4000 RPM
    Number of spindle 10 20
    Idler wheel 7 12
    Hold down clamp 4 6
    Table area 600×1260 mm 600×1860 mm
    Hydraulic pump motor 1HP 2HP
    Table travel 100 mm 100 mm
    Min. distance between drills HS-1
